CE ISO Approve Flanged Butterfly Valve，Stainless Steel Butterfly Valve With Flange

Name: CE ISO Approve Flanged Butterfly ValveStainless Steel Butterfly Valve With Flange
Brand: ACKO
Price: 1 USD

Best CE ISO Approve Flanged Butterfly Valve，Stainless Steel Butterfly Valve With Flange wholesale

Brand Name : ACKO

Model Number : D41X-10/16

Certification : CE ISO

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T

Supply Ability : 100 sets per week

Delivery Time : 7-14 working days

Packaging Details : standard sea worthy packing

Body : Cast lron,Ductile lron,Carbon Steel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316L

Disc : Ductile lron Coated by Nylon,Ductile lron Coated by Nickel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316l,Duplex Stainless Steel,Aluminum Bronze

Seat : EPDM,NBR,PTFE,Wear-resistant EPDM,High-temperature EPDM,Fluorine Rubber,Silicon rubber

Stem : Carbon Steel 45#,Stainess Steel 416,Stainless Steel 304,Stainless Steel 316

Nominal Diameter : DN40-DN150

Nominal Pressure : PN1.0-16MPa

Applicable medium : Water、Sea water、Sewage、Oil、Air、Food、Weak acid and soda etc.

Contact Now

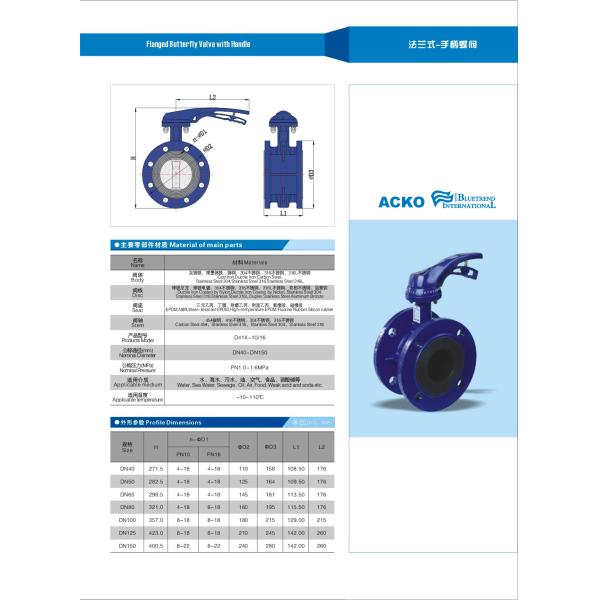

Flanged Butterfly Valve With Handle

Material of main parts

Part name	Materials
Body	HT200,QT450,WCB
Disc	QT450 ,QT450 , ,304,316,316L, QT450 Nickel Plating, QT450 Nylon Plating, Albronze,SS304,SS316,SS316L,Duplex Stainless Steel etc
Seat	EPDM,NBR
Stem	45# ,416 ,304 ,316 Carbon Steel 45#,SS416,SS304,SS316
Products Mcdel	D41X-10/16
Nominal Diameter(mm)	DN40-DN200
Nominal Pressure(MPa)	PN1.0-16MPa
Applicable medium	Fresh water,Sea water,Sewage,Air,Food,Weak acid alkali and Salt etc.
Applicable temperature	-10～110℃

Main contour and connection size								Unit:mm
Size	ØD	ØD1	n-Ød	H1	H2	L	L1	Kg
DN40	110	150	4-18	183	82.5	110	176	7.00
DN50	125	165	4-18	183	82.5	110	176	7.00
DN65	145	185	4-18	196	93	114	176	9.00
DN80	160	200	4-18	208	100	116	176	10.00
	160	200	8-18
DN100	180	220	8-18	232	110	129	215	14.00
DN125	210	250	8-18	252	125	142	260	17.00
DN150	240	285	8-22	272	143	142	260	21.00
DN200	295	340	8-22	305	170	154	260	35.00
